Specifications
• Electrical Characteristics:
> Safety Rated: 48A Max
> Single phase input: nominal voltage 208-240 VAC~ 60 Hz
> Power: 9.6kW at 240VAC
• Input Cable: NEMA 14-50 Plug.
• Output Cable & Connector:
> 18ft/5.5m cable
> SAE J1772 standard compliant
• APP:
> Precision measurement of power, energy, voltage & current
> Automated notifications: time-of-use in effect, start of charge, end of charge, unit offline,
unit back online, car not plugged in by a set time
• Smart Grid Connectivity:
> Built-in Wi-Fi connectivity (802.11b/g/n2.4GHz)
• Firmware: Over-the-air(OTA) upgradeable firmware
• Emissions Reduction: 5.12
• Enclosure:

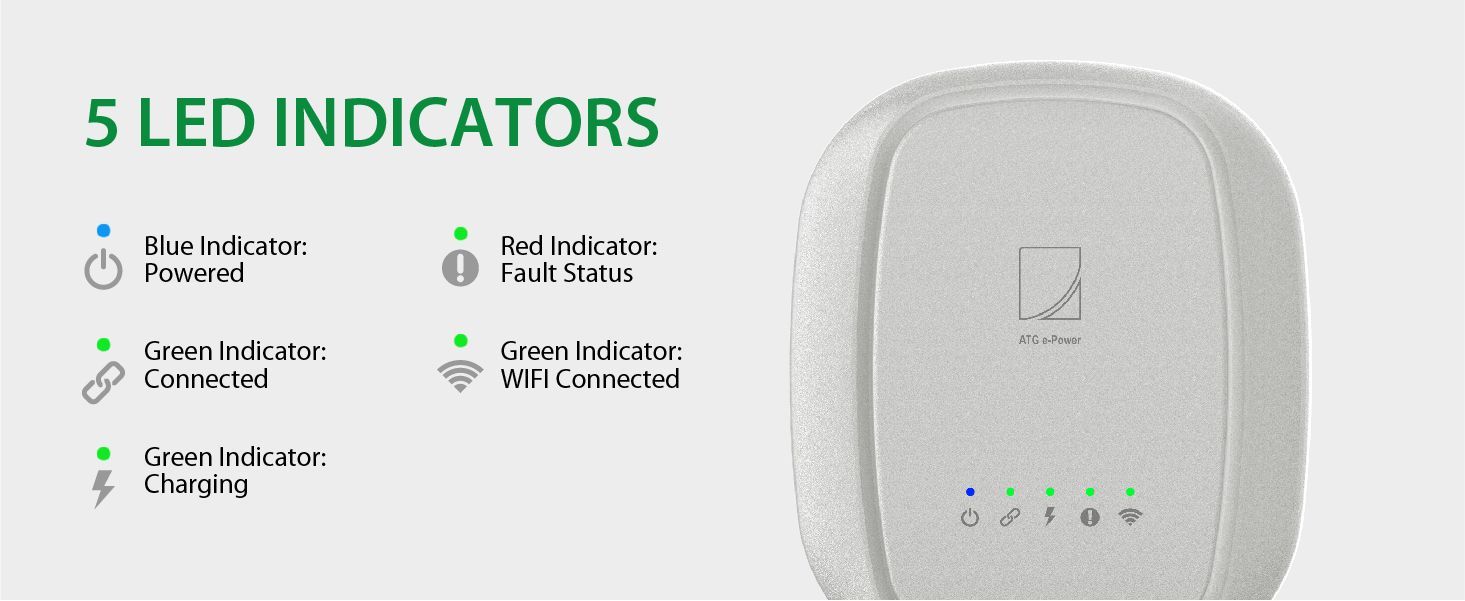

> Dynamic LED lights show charging status: standby, CP connectivity, charging in progress,
fault indicator, network connectivity
> NEMA Enclosure Type4: Weatherproof, dust-tight
> IK10: Resistant polycarbonate case
> Quick-release wall mounting bracket included
> Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Dimensions: Main enclosure: 12.3inx10.2inx4.1inch (313mmx260mmx105mm)
• Codes & Standards:
> NEC625 compliant,UL2594 compliant, OCPP 1.6J, FCC Part 15 Class B, Energy Star
• Safety: ETL Listed
• RFID:Support
• Warranty: 5 years limited product
$0.00
CALL FOR PRICING - 443-477-3208

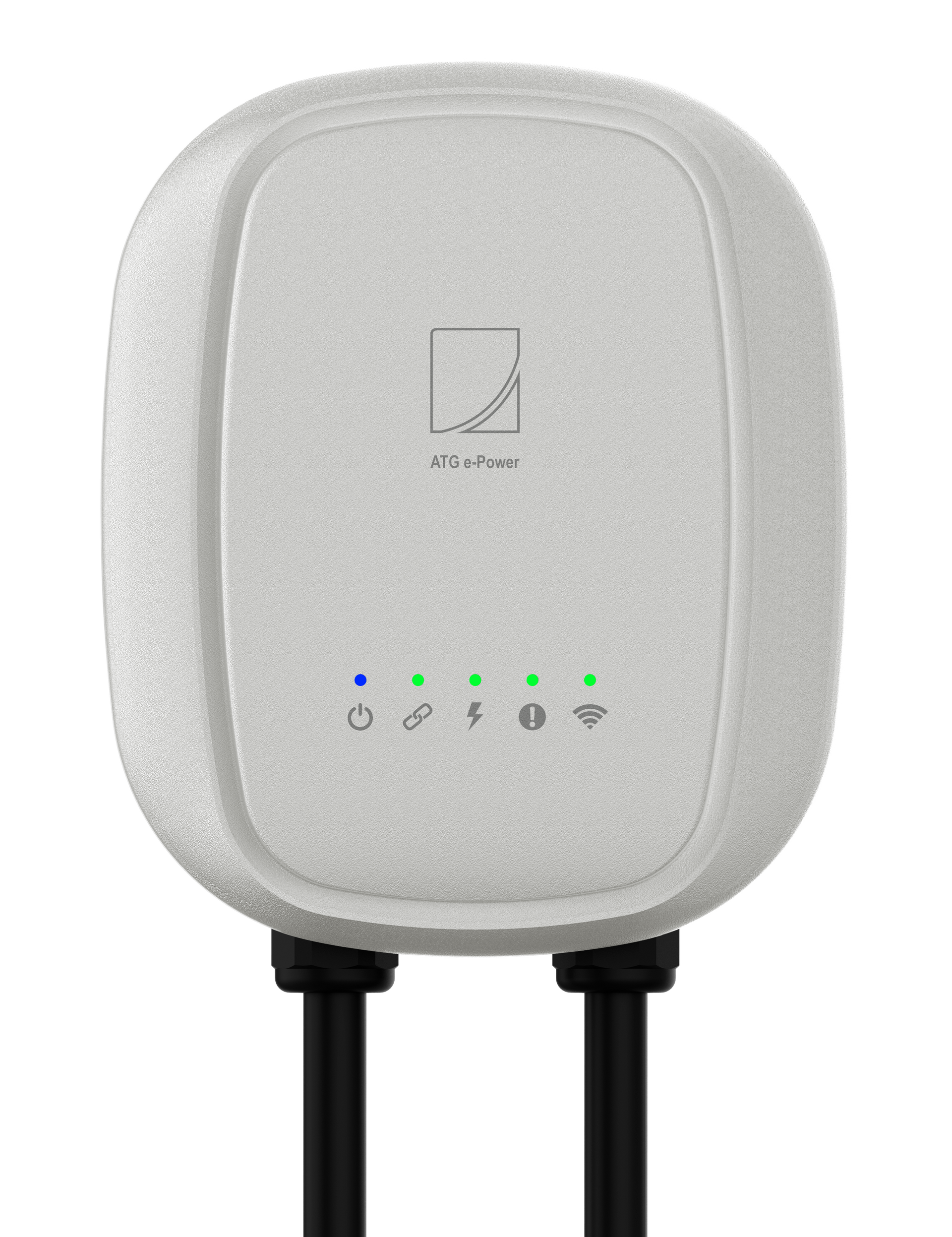

Wi-Fi & Bluetooth-enabled smart EV charging station (Level 2 EVSE) with 18-foot cable
Key Features
- Up to 7x Faster Charging
- Intelligently connects the device through Wi-Fi or Bluetooth to remote control or monitor your charger.
- Precision measurement of power, energy, voltage & current.
- Dynamic LED lights display Wi-Fi connectivity and charging behavior
- IK10 impaction resistant rating and tamper proof screws.
- Weatherproof, dust-tight, polycarbonate casing
- IK10: Resistant polycarbonate case
- 5-Year warranty
